CCTV Builder
| Price | 5,600৳ |
| Regular Price | 6,000৳ |
| Status | In Stock |
| Product Code | 13427 |
| Brand | Jovision CCTV |
| Display | ||
| Interface | 1 HDMI, 1 VGA |
|
| Resolution | HDMI: 3840×2160@30Hz/2560×1440@30Hz/1920×1080 1440×900/1280×1024/1280×720/1024×768 VGA: 1920×1080,1440×900,1280×1024,1280×720,1024×768 |
|
| Decoding Capacity | 1ch 4K 15fps;4ch@ 5.0MP/4.0MP/1080P/960P/720P 25fps | |
| Multi-Screen Display | 1/4 | |
| OSD | Camera Name & Time, Recording, Alarm Detecting , Remote connection, Volume, Channel Number |
|
| Recording | ||
| Compression | H.265/H.264 |
|
| Record Mode | Manual, Schedule, MD |
|
| Resolution | 1Ch 4K;4Ch 5.0MP/4.0MP/1080P/960P/720P |
|
| Video Detection And Alarm | ||
| Trigger Event | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
|
| Video Detection | Motion Detection, No Video Detection |
|
| Playback And Backup | ||
| Sync Playback | 1ch 4K,1ch 5.0MP, 1ch 4.0MP, 1ch 3.0MP, 2ch 1080P |
|
| Search Mode | Channel number / recording type / date |
|
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
|
| Backup Mode | FAT32 USB Device/Network |
|
| Network | ||
| Interface | 1 RJ-45 port (10/100Mbps) |
|
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP |
|
| Smart Phone | iPhone, Android |
|
| Storage | ||
| eSATA | 1 SATA interfaces |
|
| Power | ||
| Power Consumption | ≤ 10 W (Without HDD) |
|
| Power Supply | DC 12V |
|
| Component Environment | ||
| Storage Conditions | up to 10TB |
|
| Construction | ||
| Dimensions | 260X47.5X225mm |
|
| Net Weight | ≤ 1.0kg (Without HDD) |
|
| Warranty | ||
| Manufacturing Warranty | 1 Year Warranty | |

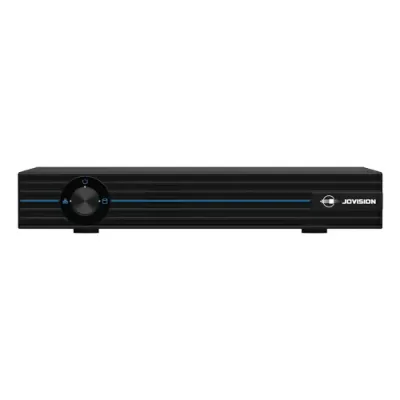

The Jovision JVS-ND7604-HP is a high-performance 4-channel Network Video Recorder (NVR) designed for homes and small-scale businesses that demand high-quality, 24/7 security. With support for up to 4K Ultra HD resolution and H.265 compression, it ensures crystal-clear footage while saving storage space.
Key Features:
The JVS-ND7604-HP offers flexible recording modes — Manual, Schedule, and Motion Detection — making it ideal for round-the-clock security monitoring. Its intuitive interface and remote access through Jovision CloudSEE enable users to view live streams from anywhere, anytime.
Whether for a home, retail store, or office, this compact yet powerful NVR ensures stability, reliability, and crystal-clear 4K video quality — all at an affordable price.
