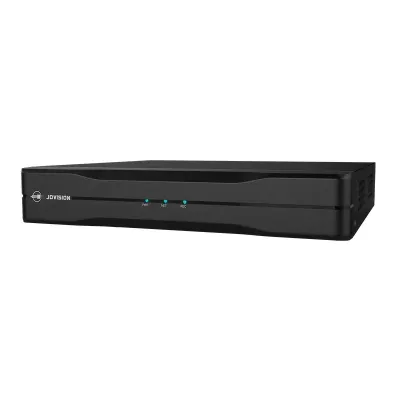

Jovision JVS-ND6616-HD 16CH H.265 NVR

Price	6,500৳
Regular Price	7,000৳
Status	In Stock
Product Code	13420
Brand	Jovision CCTV

Key Features

Adopt the new Vstar GUI, easy to operate and run smoothly
Support intelligent coding VSMart, greatly reducing storage space
Improved compatibility for HDD. Support max. of 10TB

View More Info

Payment Options

6,500৳

Cash Discount Price

Online / Cash Payment

৳/month

Regular Price: 7,000৳

0% EMI for up to 12 Months

Quantity :

remove add

Specification
Description
Reviews (0)

Specification:

Display
Interface	1 HDMI, 1 VGA
Resolution	HDMI: 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768
Decoding Capacity	16CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps
Multi-Screen Display	4/ 5/ 6/ 7/ 8/ 9/ 10/ 11/ 12/ 13/ 14/ 15/ 16
OSD	Camera Name & Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number
Recording
Compression	H.265/H.264
Record Mode	Manual, Schedule, MD
Resolution	16CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p
Video Detection And Alarm
Trigger Event	Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer
Video Detection	Motion Detection, No Video Detection
Playback And Backup
Sync Playback	1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080p
Search Mode	Channel Number / Recording Type / Date
Playback Function	Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom
Backup Mode	FAT32 USB Device/ Network
Network
Interface	1 RJ45 Port (10/100Mbps)
Network Function	TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE
Smart Phone	Support iOS, Android App
Storage
eSATA	1 SATA Interfaces
Power
Power Consumption	≤10W (Without HDD)
Power Supply	DC 12V
Component Environment
Storage Conditions	Up to 10TB
Construction
Dimensions	260x48x227mm
Net Weight	≤1.0kg (Without HDD)
Warranty
Manufacturing Warranty	1 Year Warranty

Description :

Jovision JVS-ND6616-HD – 16CH H.265 HD Network Video Recorder

The Jovision JVS-ND6616-HD is a powerful 16-channel NVR built for high-definition IP surveillance networks. Supporting resolutions up to 5MP per channel with H.265/H.264 compression, it delivers superior image quality, efficient data storage, and seamless remote access. Ideal for businesses, offices, or large residential setups requiring reliable and scalable video security.

High-Performance Recording

• Supports up to 16 IP camera channels.
• Records in 5MP / 4MP / 1080p / 720p at 25fps.
• Dual-stream video compression (H.265/H.264).
• Bandwidth: 80Mbps Input / 40Mbps Output.

Advanced Display & Playback

• Dual video output via HDMI and VGA.
• Max output resolution: 2560x1440.
• Multi-screen display: up to 16 channels.
• Playback options: rewind, zoom, slow motion, snapshot.

Smart Video Detection & Alerts

Integrated with motion detection and no-video alarms, the JVS-ND6616-HD can trigger instant notifications such as recording, snapshot, email alerts, or buzzer alarms. Stay informed and secure in real time.

Network & Connectivity

• 1x RJ45 (10/100Mbps) Ethernet port.
• Supports TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE.
• ONVIF 2.4 compliant for compatibility with multiple IP camera brands.
• Access via Jovision CloudSEE mobile app for iOS and Android.

Storage & Backup Options

• 1 SATA interface supporting up to 10TB HDD.
• 2x USB ports for data backup and mouse control.
• Backup via FAT32 USB device or network.

Technical Specifications

Model	JVS-ND6616-HD
Video Input	16 Channel IP Camera
Video Output	HDMI & VGA (up to 2560x1440)
Compression	H.265 / H.264
Record Modes	Manual, Schedule, Motion Detection
Network Protocols	TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE
Storage	1 SATA (Up to 10TB)
USB Ports	2 x USB
Power Supply	DC12V, ≤10W (Without HDD)
Dimensions	260x48x227mm
Operating Temp.	-10°C ~ 55°C

Why Choose Jovision JVS-ND6616-HD?

With its 16-channel recording capacity, advanced H.265 compression, and intuitive CloudSEE remote monitoring, the JVS-ND6616-HD is perfect for businesses and institutions seeking a secure, scalable, and efficient IP surveillance management solution.
