CCTV Builder
| Price | 5,800৳ |
| Regular Price | 6,000৳ |
| Status | In Stock |
| Product Code | 13419 |
| Brand | Jovision CCTV |
| Display | ||
| Interface | 1 HDMI, 1 VGA |
|
| Resolution | HDMI: 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768 |
|
| Decoding Capacity | 10CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps |
|
| Multi-Screen Display | 1/ 4/ 5/ 6/ 7/ 8/ 9/ 10 |
|
| OSD | Camera Name & Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number |
|
| Recording | ||
| Compression | H.265/H.264 |
|
| Record Mode | Manual, Schedule, Motion Detection |
|
| Resolution | 10CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p |
|
| Video Detection And Alarm | ||
| Trigger Event | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
|
| Video Detection | Motion Detection, No Video Detection |
|
| Playback And Backup | ||
| Sync Playback | 1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080p |
|
| Search Mode | Channel Number / Recording Type / Date |
|
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
|
| Backup Mode | FAT32 USB Device/ Network |
|
| Network | ||
| Interface | 1 RJ45 Port (10/100Mbps) |
|
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE |
|
| Smart Phone | Support iOS, Android App |
|
| Storage | ||
| eSATA | 1 SATA Interfaces |
|
| Power | ||
| Power Consumption | ≤10W (Without HDD) |
|
| Power Supply | DC 12V |
|
| Component Environment | ||
| Storage Conditions | Up to 10TB |
|
| Construction | ||
| Dimensions | 255x41x195mm |
|
| Net Weight | ≤1.0kg (Without HDD) |
|
| Warranty | ||
| Manufacturing Warranty | 1 Year Warranty | |

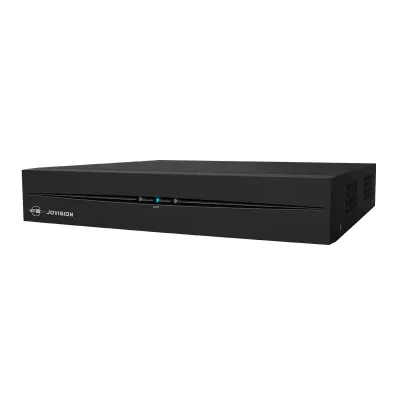

Enhance your surveillance network with the Jovision JVS-ND6610-HD, a professional-grade 10-channel NVR built for high-quality recording, smart playback, and seamless remote access. Designed to support up to 10 IP cameras at 5MP resolution, it ensures smooth, secure, and efficient video management with advanced H.265 compression technology.
The JVS-ND6610-HD features intelligent video analytics for motion detection and no-video alerts. Trigger automated responses such as recording, PTZ movement, snapshots, or instant notifications via email or client software.
| Model | JVS-ND6610-HD |
| Video Input | 10 Channel IP Camera |
| Video Output | HDMI & VGA (up to 2560x1440) |
| Compression | H.265 / H.264 |
| Record Modes | Manual, Schedule, Motion Detection |
| Network Protocols | TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE |
| Storage | 1 SATA (Up to 10TB) |
| USB Ports | 2 x USB |
| Power Supply | DC12V, ≤10W |
| Dimensions | 255x41x195mm |
| Operating Temp. | -10°C ~ 55°C |
With its 10-channel capacity, HDMI/VGA display, and H.265 compression, the JVS-ND6610-HD is an ideal solution for small-to-medium scale video surveillance systems. It ensures stable operation, superior image quality, and easy mobile monitoring through Jovision’s secure CloudSEE platform.
