CCTV Builder
| Price | 20,000৳ |
| Regular Price | 24,000৳ |
| Status | In Stock |
| Product Code | 13422 |
| Brand | Jovision CCTV |
| Display | ||
| Interface | 16 Channel |
|
| Recording | ||
| Compression | H.265/H.264 |
|
| Record Mode | Manual, Schedule, MD |
|
| Resolution | HDMI: 3840×2160，1920×1080，2560×1440，1440×900，1280×1024，1280×720，1024×768 VGA: 1920×1080，1440×900，1280×1024，1280×720，1024×768 |
|
| Video Detection And Alarm | ||
| Trigger Event | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
|
| Video Detection | Motion Detection, No Video Detection |
|
| Playback And Backup | ||
| Sync Playback | 1ch 4K, 2ch 5.0MP, 3ch 4.0MP, 4ch 3.0MP,4ch 1080P |
|
| Search Mode | Channel Number/ Recording Type/ Date |
|
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
|
| Backup Mode | USB Device FAT32 |
|
| Storage | ||
| eSATA | 4x SATA Interface |
|
| Power | ||
| Power Consumption | ≤ 20 W (Without HDD) |
|
| Power Supply | DC 12V |
|
| Component Environment | ||
| Storage Conditions | Up to 10TB Max. |
|
| Construction | ||
| Dimensions | 445*45*320(mm) |
|
| Net Weight | ≤5Kg (Without HDD) |
|
| Warranty | ||
| Manufacturing Warranty | 1 Year Warranty | |

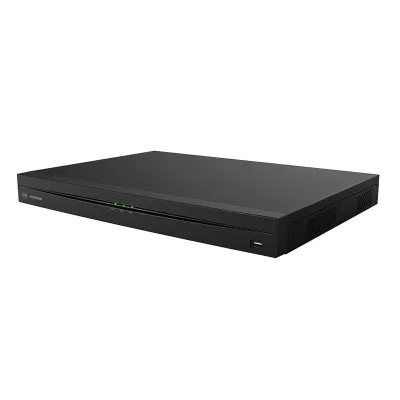

The Jovision JVS-ND7916-DV is a powerful and reliable 16-channel 4K NVR designed for large-scale security systems. With 320Mbps input bandwidth, 4 SATA storage bays, and ONVIF 2.4 compatibility, it ensures smooth, stable, and intelligent video surveillance for businesses, offices, and institutions.
Supports 4K, 5MP, and 1080P resolutions for superior video clarity and smooth frame rates up to 30fps.
Equipped with 2x RJ45 ports (100/1000Mbps) for stable and fast data transmission across networks.
Supports motion detection, email alerts, app notifications, and external alarms for maximum security awareness.
Includes 4 SATA interfaces with up to 10TB each — ideal for continuous, high-quality video retention.
Advanced search by channel, type, and date. Supports playback of up to 4CH 1080P and easy USB/network backup.
Flexible live viewing options — from 1 to 16-channel layouts for real-time monitoring efficiency.
