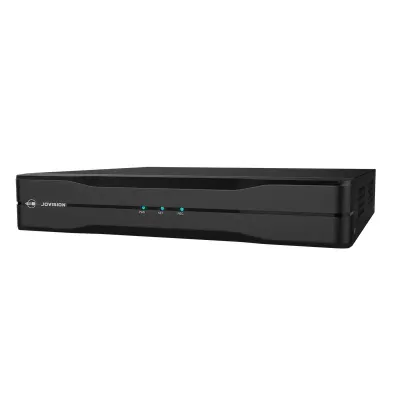

Jovision JVS-ND7008-PD01 8CH PoE H.265 NVR

Price	9,000৳
Regular Price	9,500৳
Status	In Stock
Product Code	13430
Brand	Jovision CCTV

Key Features

Adopt the new VStar GUI, easy to operate and run smoothly
Support intelligent coding VSmart, greatly reducing storage space
Improved compatibility for HDD. Support max. of 8TB

View More Info

Payment Options

9,000৳

Cash Discount Price

Online / Cash Payment

৳/month

Regular Price: 9,500৳

0% EMI for up to 12 Months

Quantity :

remove add

Specification
Description
Reviews (0)

Specification:

Display
Interface	1 HDMI, 1 VGA
Resolution	HDMI: 3840x2160, 1920x1080, 2560x1440, 1440x900, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768
Decoding Capacity	8CH 5.0MP/4.0MP/1080p/960p/720p @25fps
Multi-Screen Display	1/ 4/ 5/ 6/ 7/ 8/ 9
OSD	Camera Name & Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number
Recording
Compression	H.265/H.264
Record Mode	Manual, Schedule, Motion Detection
Resolution	8CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p
Video Detection And Alarm
Trigger Event	Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer
Video Detection	Motion Detection, No Video Detection
Playback And Backup
Sync Playback	1CH 5.0MP/ 1CH 4.0MP/ 2CH 3.0MP/ 4CH 2.0MP
Search Mode	Time /Date, Schedule, Motion Detection
Playback Function	Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom
Backup Mode	FAT32 USB Device/ Network
Network
Interface	1 RJ45 Port (10/100/1000Mbps)
Network Function	TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE
Smart Phone	Support iOS, Android App
Storage
eSATA	Single SATA interface
Power
Power Consumption	≤15W (Without HDD)
Power Supply	48V DC
Component Environment
Storage Conditions	Up to 8TB
Construction
Dimensions	360x264x45mm
Net Weight	≤2Kg (Without HDD)
Warranty
Manufacturing Warranty	1 Year Warranty

Description :

Jovision JVS-ND7008-PD01 8 Channel PoE NVR

Smart 8-channel network video recorder with built-in PoE ports, 4K HDMI output, and advanced H.265 compression for crystal-clear recording.

The Jovision JVS-ND7008-PD01 is a high-performance 8 Channel PoE NVR designed for reliable and easy IP camera integration. With 4K HDMI output, H.265/H.264 compression, and 8 built-in PoE ports, it ensures simplified wiring and stable power for each camera. Perfect for both small and mid-sized installations, it delivers excellent image quality and seamless remote monitoring through Jovision’s CloudSEE app.

Equipped with motion detection, event-triggered recording, and multi-screen playback, this NVR provides complete security coverage with intelligent control. Store up to 8 TB of data and manage footage effortlessly via USB or network backup.

Key Features

8 Channel IP Camera Input with PoE
4K HDMI and VGA Display Output
H.265/H.264 Video Compression
8 PoE Ports (IEEE 802.3af)
Bandwidth I/O: 60 Mbps / 40 Mbps
Up to 8 TB SATA Storage Capacity
Motion Detection & Alarm Triggers
Mobile App Support (iOS & Android)
ONVIF 2.4 Interoperability

Technical Specifications

Model: JVS-ND7008-PD01
IP Camera Input: 8 Channels
Video Compression: H.265 / H.264
Display Interface: HDMI & VGA
Max Output Resolution: 3840 × 2160 (4K)
Max Decoding: 8 CH 5 MP / 4 MP @ 25 fps
Recording Modes: Manual, Schedule, Motion Detection
PoE Ports: 8 × 100 Mbps (IEEE 802.3af)
Storage: 1 × SATA (up to 8 TB)
Network Protocols: TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE
Mobile Access: iOS & Android App
Power Supply: DC 48 V (≤ 15 W without HDD)
Operating Temperature: −10 °C ~ 55 °C
Dimensions: 360 × 264 × 45 mm
Weight: ≤ 2 kg (without HDD)

???? Why Choose Jovision?

Jovision Technology is a leading global brand in intelligent video surveillance. The JVS-ND7008-PD01 PoE NVR combines innovation and reliability for secure, efficient, and future-ready monitoring solutions.
