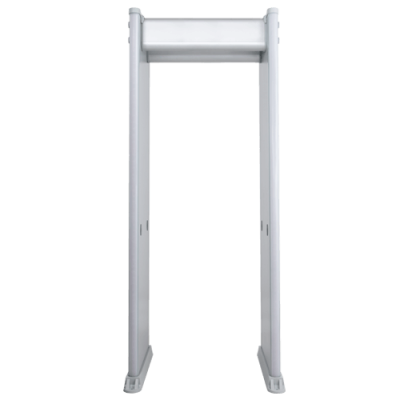

The ZKTeco ZK‑D4330 is a professional walk‑through metal detector designed for high‑accuracy security screening in busy environments. It features adjustable multi‑zone detection and a clear 7‑inch touchscreen interface for easy setup and monitoring. With excellent anti‑interference capability and real‑time alert indicators, this security gate delivers reliable detection performance for airports, schools, offices, government buildings, event venues, and other high‑traffic areas.
Key Features
- Up to 69 adjustable detection zones for precise location identification :
- 7‑inch HD touch display interface for clear control and setup
- Up to 500 sensitivity levels for fine‑tuned detection
- Clear synchronous sound and LED visual alarms
- Pass count and alarm count logging for analytics
- TCP/IP network interface for remote monitoring and control
- Automatic and infrared detection modes for versatile screening
- Designed for high throughput (>40 people per minute)
- Robust construction for long‑lasting use and reliability
Technical Specifications
| Detection Zones | 12 / 24 / 33 / 46 / 69 modes |
| Display | 7‑inch Touchscreen HD |
| Sensitivity Levels | Up to 500 |
| Alarm Types | Audible tones + LED indicators |
| Throughput | > 40 persons/min |
| Communication | TCP/IP network interface |
| Power | AC100V‑240V (DC15V Optional) |
| Temperature Operating | -20°C to 55°C |
| Dimensions (L×W×H) | 2220×930×760 mm |
| Weight | Gross 70 kg |
The ZKTeco ZK‑D4330 combines multi‑zone detection, adjustable sensitivity, network monitoring capabilities, and a user‑friendly touchscreen to deliver accurate and efficient security screening. It is ideal for high‑traffic locations requiring fast, reliable metal detection with clear alerts and reporting functions.
