CCTV Builder
| Price | 9,190৳ |
| Regular Price | 9,590৳ |
| Status | In Stock |
| Product Code | 13983 |
| Brand | TP-Link |

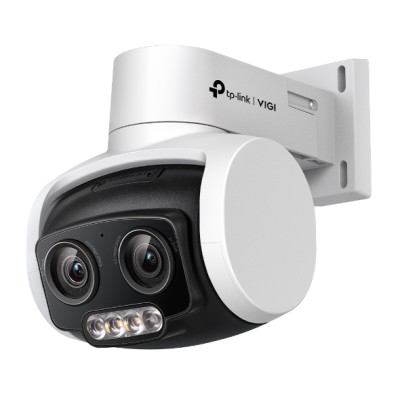

The VIGI C540V is a professional 4MP outdoor full-color dual-lens varifocal pan tilt network camera designed for intelligent 24-hour security monitoring. It combines 4MP high-resolution imaging, 3× mixed zoom, 4–12mm varifocal lens, powerful pan and tilt movement, automatic tracking, Human & Vehicle Classification, Smart Detection, Active Defense and two-way audio in one advanced surveillance solution.
With 24-hour full-color monitoring, H.265+ compression, IP66 outdoor protection, microSD recording and PoE connectivity, the VIGI C540V is suitable for businesses, warehouses, parking areas, commercial properties, entrances and other demanding surveillance environments.
The VIGI C540V 4MP PTZ IP camera provides a maximum resolution of 2560 × 1440 for detailed security monitoring. Its 4–12mm mixed-zoom lens provides flexible viewing options, while the 3× mixed zoom allows users to focus on important objects across large surveillance areas.
The camera's dual-lens varifocal design, pan and tilt mechanism and intelligent tracking make it suitable for locations where a conventional fixed-lens CCTV camera may not provide sufficient coverage or flexibility.
One of the key advantages of the VIGI C540V is its 3× mixed zoom capability. The 4–12mm focal length provides flexible monitoring from wider scenes to more focused views.
Instant Zoom provides responsive zooming without the noticeable delays and image dragging that can occur with conventional digital zoom operations, helping users inspect important objects more efficiently.
The VIGI C540V is designed for 24-hour full-color surveillance. Its large-aperture F1.6 lens, high-sensitivity 1/3-inch Progressive Scan CMOS sensor and supplemental lighting work together to capture useful color details in challenging nighttime conditions.
The camera features one IR LED with up to 30-meter illumination and three white LEDs with up to 30-meter illumination. The illuminators can be configured for automatic, scheduled, always-on or always-off operation.
The VIGI C540V Pan Tilt Camera supports a pan range of up to 0° to 332° and a tilt range of 0° to 120°. This provides flexible coverage of large surveillance areas.
The camera supports up to 300 presets and 8 patrol scans, with up to 8 presets assigned to each patrol. Configurable pan and tilt speeds allow installers to customize camera movement for different environments.
Power-off memory allows the camera to automatically restore its previous PTZ and lens status after a power failure. It also supports park action and 3D positioning.
The VIGI C540V automatic tracking camera can intelligently follow moving subjects within the monitored area. Combined with its pan tilt mechanism and varifocal zoom capability, automatic tracking helps maintain visual coverage as subjects move.
This makes the camera particularly useful for parking areas, entrances, warehouses, commercial premises, factories and large outdoor monitoring zones.
Integrated AI technology can distinguish humans and vehicles from other objects. This helps improve event notification accuracy and makes security monitoring more relevant.
Human and Vehicle Classification is useful for business entrances, parking areas, warehouses, retail environments and other locations where distinguishing people and vehicles from general motion is important.
The VIGI C540V Smart Detection camera supports multiple intelligent security events to help users identify important activities within the monitored area.
Alarm linkage can include memory card video recording, message push, audible warnings and white-light flashing, helping users respond more quickly to important security events.
The Active Defense feature adds an additional security layer by using audible warnings and white-light flashing when supported abnormal events are detected.
This active response can help warn potential intruders and draw attention to unusual activity within the monitored area.
VIGI C540V includes a built-in microphone and speaker for two-way audio communication. Users can listen to activity around the camera and communicate remotely through compatible VIGI management platforms.
The camera supports 8KHz audio sampling and environmental noise filtering, providing practical voice communication for security monitoring applications.
With H.265+ video compression, VIGI C540V can efficiently compress surveillance footage to help reduce storage requirements and network bandwidth usage while maintaining useful video quality.
The main stream supports H.265+, H.265, H.264+ and H.264, while the sub-stream supports H.265 and H.264 for flexible compatibility with modern IP surveillance systems.
The VIGI C540V includes a built-in microSD card slot supporting up to 256GB for local video recording. The camera can be managed through the VIGI App, VIGI Security Manager, VIGI NVR and Web interface.
ONVIF Profile S support and multiple management options make the VIGI C540V suitable for integration into professional IP surveillance environments.
VIGI C540V supports PoE 802.3at Class 4 and 12V DC power. With compatible PoE equipment, power and network data can be transmitted through a single Ethernet connection, helping simplify professional CCTV installation.
| Model | VIGI C540V |
|---|---|
| Camera Type | 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4MP, 2560 × 1440 |
| Lens | 4–12mm Mixed Zoom, F1.6 |
| Lens Mount | M12 × P0.5 |
| Zoom | 3× Mixed Zoom |
| Field of View | Horizontal: 84°, Vertical: 46°, Diagonal: 100° |
| DORI - 4mm | Detect: 80m; Observe: 33m; Recognize: 16m; Identify: 8m |
| DORI - 8mm | Detect: 150m; Observe: 63m; Recognize: 30m; Identify: 15m |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| IR LED | 1 LED, up to 30m, 850nm |
| White LEDs | 3 LEDs, up to 30m |
| Pan Range | 0° to 332° |
| Tilt Range | 0° to 120° |
| Pan Speed | Configurable 1° to 55°/s; Preset Speed 55°/s |
| Tilt Speed | Configurable 1° to 40°/s; Preset Speed 40°/s |
| Manual Control Speed | Configurable 8° to 35°/s |
| Presets | Up to 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-Off Memory | Supported |
| Park Action | Supported |
| 3D Positioning | Supported |
| Automatic Tracking | Supported |
| WDR | DWDR |
| Image Enhancement | BLC, 3D DNR, HLC, Smart IR |
| Audio | Two-Way Audio with Built-in Microphone and Speaker |
| Audio Sampling | 8KHz |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Storage | Built-in MicroSD Card Slot, up to 256GB |
| Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port with PoE |
| PoE | 802.3at, Class 4 |
| ONVIF | Supported, Profile S |
| Management | VIGI App, VIGI Security Manager, VIGI NVR and Web |
| Cloud | Supported |
| Smart Features | Human & Vehicle Classification, Smart Detection, Automatic Tracking, Active Defense |
| Protection Rating | IP66 |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 95% or Less, Non-Condensing |
| Power Supply | 12V DC ±5%; PoE 802.3at Class 4 |
| Maximum Power Consumption | 14W |
| Dimensions | 107 × 136 × 139 mm |
| Material | Plastic |
| Net Weight | 0.43 kg |
The VIGI C540V 4MP Outdoor Full-Color Dual-Lens Varifocal PTZ Camera is suitable for a wide range of residential, commercial and professional surveillance applications, including:
The VIGI C540V combines 4MP full-color imaging, dual-lens varifocal technology, 3× mixed zoom, instant zoom, powerful pan and tilt movement, automatic tracking, Human & Vehicle Classification, Smart Detection, Active Defense and two-way audio in one professional network camera.
With 4–12mm mixed zoom, 24-hour full-color monitoring, IP66 outdoor protection, H.265+ compression, microSD storage, ONVIF compatibility and PoE connectivity, the VIGI C540V is a versatile solution for modern commercial and professional IP CCTV surveillance systems.
Get specific details about this product from customers who own it.
