| Price | 6,490৳ |
| Regular Price | 6,990৳ |
| Status | In Stock |
| Product Code | 13981 |
| Brand | TP-Link |

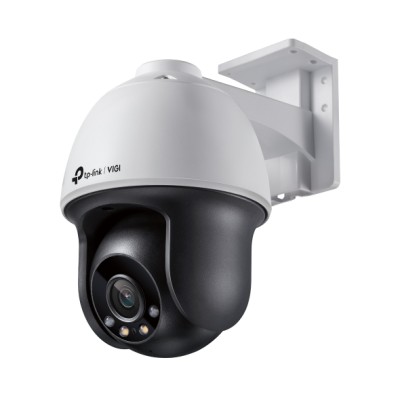

The VIGI C540 is a professional 4MP outdoor full-color pan tilt network camera designed for intelligent 24-hour security monitoring. It combines 4MP high-resolution imaging, 24-hour full-color night vision, powerful pan and tilt movement, automatic tracking, Human & Vehicle Classification, Smart Detection, Active Defense, two-way audio, H.265+ compression and IP66 weather protection.
The VIGI C540 4MP pan tilt IP camera provides a maximum resolution of 2560 × 1440 for detailed surveillance monitoring. Its full-color imaging system combines a large-aperture F1.6 lens, high-sensitivity sensor and supplemental lighting to help preserve colorful details throughout the day and night.
The camera is designed for businesses, commercial properties, warehouses, parking areas, entrances and other locations where flexible remote monitoring and intelligent surveillance are required.
One of the major advantages of the VIGI C540 is its motorized pan and tilt capability. The camera supports a pan range of up to 0° to 350° and a tilt range of 0° to 120°, allowing flexible coverage of important surveillance areas.
The camera supports up to 300 presets, with up to 8 patrol scans and up to 8 presets for each patrol. Configurable pan and tilt speeds allow installers to customize camera movement according to the monitoring environment.
The VIGI C540 automatic tracking camera can intelligently follow specified moving people or vehicles. The camera analyzes the scene and continuously tracks selected subjects to help maintain surveillance coverage when movement occurs within the monitored area.
Automatic tracking is particularly useful for parking areas, entrances, commercial premises, warehouses and other locations where people or vehicles may move through a large monitoring zone.
The VIGI C540 provides 24-hour full-color monitoring using a high-sensitivity image sensor, large-aperture lens and supplemental lighting. This combination helps maintain useful color information even in challenging nighttime conditions.
The camera features two IR LEDs with up to 30-meter illumination and two white LEDs with up to 30-meter illumination. Users can configure illuminators through automatic, scheduled, always-on or always-off modes.
The integrated AI processing system can distinguish humans and vehicles from other objects. Users can customize alarm rules according to their monitoring requirements, helping improve event notification accuracy.
This intelligent classification is useful for entrances, parking areas, warehouses, retail environments and other locations where it is important to distinguish people and vehicles from general movement.
The VIGI C540 supports multiple intelligent detection functions designed to help identify important security events and provide timely notifications.
These features help users create customized monitoring rules and receive notifications when important events occur within the surveillance area.
The Active Defense function provides an additional layer of protection by using audible warnings and white-light flashing when supported abnormal events are detected.
This feature can help warn potential intruders and draw attention to security incidents without requiring immediate manual intervention.
VIGI C540 features a built-in microphone and speaker for two-way audio communication. Users can listen to the monitored environment and communicate remotely through compatible VIGI platforms.
The camera supports audio input and output with environmental noise filtering and 8KHz audio sampling, making remote voice communication practical for everyday surveillance applications.
The VIGI C540 incorporates VIGI Smart Video Enhancement technologies including Smart IR, WDR, 3D DNR and Night Vision to improve surveillance image quality in challenging lighting conditions.
3D DNR helps reduce image noise, while Smart IR and Night Vision technologies enhance visibility in low-light environments. DWDR helps improve image details in scenes with differences between bright and dark areas.
With H.265+ video compression, VIGI C540 efficiently compresses surveillance footage to help reduce storage requirements and network load. This makes the camera suitable for long-term video recording and professional IP CCTV installations.
The main stream supports H.265+, H.265, H.264+ and H.264, while the sub-stream supports H.265 and H.264 for flexible compatibility with surveillance systems.
The VIGI C540 includes an onboard microSD card slot for local recording. The detailed specification lists support for microSD cards up to 256GB. The camera can also be managed through the VIGI App, VIGI Security Manager, VIGI NVR and Web interface.
The VIGI surveillance ecosystem also supports flexible storage options including NVR storage, NAS, FTP and local SD card recording depending on the selected management and recording setup.
VIGI C540 supports PoE and 12V DC power. With compatible PoE equipment, power and network data can be transmitted through a single Ethernet connection, helping simplify outdoor CCTV installation and reduce cable requirements.
| Model | VIGI C540 |
|---|---|
| Camera Type | 4MP Outdoor Full-Color Pan Tilt Network Camera |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4MP, 2560 × 1440 |
| Lens | Fixed Focal Lens, 4mm, F1.6 |
| Lens Mount | M12 |
| Field of View | Horizontal: 79°, Vertical: 43°, Diagonal: 93° |
| DORI Distance | Detect: 80m; Observe: 33m; Recognize: 16m; Identify: 8m |
| Minimum Illumination | 0 Lux with IR/White Light |
| IR LEDs | 2 LEDs, up to 30m, 850nm |
| White LEDs | 2 LEDs, up to 30m |
| Pan Range | 0° to 350° |
| Tilt Range | 0° to 120° |
| Presets | Up to 300 presets |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Automatic Tracking | Supported |
| Digital Zoom | Supported |
| WDR | DWDR |
| Noise Reduction | 3D DNR |
| Audio | Two-Way Audio with Built-in Microphone and Speaker |
| Audio Sampling | 8KHz |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Storage | Built-in MicroSD Card Slot, up to 256GB |
| Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| PoE | 802.3af/at, Class 4 |
| ONVIF | Supported |
| Management | VIGI App, VIGI Security Manager, VIGI NVR and Web |
| Cloud | Supported |
| Smart Features | Human & Vehicle Classification, Smart Detection, Automatic Tracking, Active Defense |
| Protection Rating | IP66 Waterproof |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 95% or Less, Non-Condensing |
| Power Supply | 12V DC ±5%, Max. 14W; PoE 802.3af/at, Class 4 |
| Dimensions | 120 × 172 × 198 mm |
| Material | Plastic |
| Weight | 195g |
The VIGI C540 4MP Outdoor Full-Color Pan Tilt IP Camera is suitable for a wide range of residential, commercial and professional surveillance applications, including:
The VIGI C540 combines 4MP full-color imaging, powerful pan and tilt movement, automatic tracking, Human & Vehicle Classification, Smart Detection, Active Defense, two-way audio, H.265+ compression and IP66 outdoor protection in a professional network camera.
With PoE/12V DC connectivity, onboard microSD storage, ONVIF compatibility and flexible VIGI management options, the VIGI C540 is a strong choice for modern business, commercial and professional IP CCTV surveillance systems.
