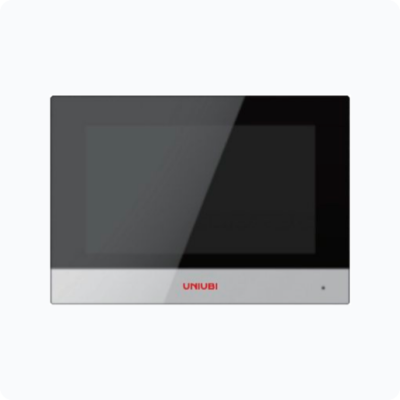

The Uni-Ubi Uface C71 is an indoor tablet unit designed for convenient communication and integration with compatible VoIP systems. It features a 7-inch LCD touchscreen, a built-in 3W speaker with Acoustic Echo Cancellation (AEC), one SIP line, and Power over Ethernet (PoE) support.
With GPIO alarm inputs, expandable TTL interfaces, and a compact design, the Uface C71 is suitable for compatible indoor communication and security-system installations.
A 1024 × 600 LCD touchscreen with 10-point capacitive touch supports convenient indoor operation.
The built-in 3W speaker and AEC technology support clearer hands-free communication.
One SIP line enables integration with compatible Voice over IP communication systems.
Power over Ethernet support helps simplify installation when used with compatible network equipment.
Eight GPIO inputs provide interfaces for compatible alarm and security-system connections.
Three TTL interfaces support expansion options such as Bluetooth, Zigbee, or RS485.
| Brand | Uni-Ubi |
|---|---|
| Model | Uface C71 |
| Product Type | Tablet Indoor Unit |
| Display | 7-inch LCD touchscreen |
| Display Resolution | 1024 × 600 |
| Touch Technology | 10-point capacitive touch |
| Brightness | 250 cd/m² |
| Contrast Ratio | 800:1 |
| Audio | Built-in 3W speaker, microphone input |
| Acoustic Feature | AEC (Acoustic Echo Cancellation) |
| SIP | 1 SIP line |
| Ethernet | 100 Mbps |
| PoE | Supported |
| Wi-Fi | 2.4 GHz; model variant dependent |
| Security Interface | 8 GPIO inputs |
| Serial Interfaces | 3 TTL interfaces |
| Additional Interfaces | 1 IIC, 1 ADC, 1 microphone input |
| Video Codec | H.264 |
| Video Resolution | 640 × 480 |
| Frame Rate | 30 fps |
| Operating System | Linux 4.9 |
| Processor | Dual-core ARM Cortex-A7 |
| Memory | 1 Gbit DDR |
| Flash Storage | 128 Mbit |
| Power Supply | DC 12V/2A |
| Power Consumption | Standby ≤ 1W; total ≤ 5W |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions | 200 × 140 × 20 mm |
The Uface C71 can be considered for compatible indoor communication and security projects, depending on the connected system and installation requirements.
The Uni-Ubi Uface C71 combines a touchscreen interface, hands-free audio, SIP connectivity, PoE support, and multiple expansion interfaces in a compact indoor unit. Its features make it a practical option for projects that require compatible indoor communication and security-system integration.
Looking for the Uni-Ubi Uface C71 price in Bangladesh? Contact Master Technology for the latest price, stock availability, and product information. Confirm compatibility with your existing SIP/VoIP system, network equipment, and installation requirements before purchasing.
