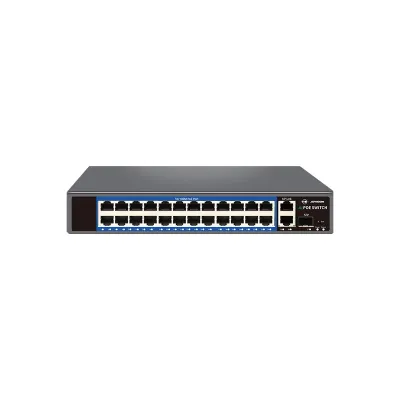

Jovision JVS-S27-24P-300W PoE Switch

The JVS-S27-24P-300W is a high-capacity 24-port PoE switch designed for professional CCTV and enterprise networks. With advanced VLAN support, long-distance Extend Mode, and Gigabit uplink options, it ensures stable data transmission and powerful PoE output for large surveillance installations.

Key Features

• 24 × 100M PoE Ports for IP cameras & PoE devices
• 2 × 1000M RJ45 Uplink Ports for high-speed connectivity
• 1 × 1000M SFP Fiber Port for long-distance networking
• 300W PoE Budget supporting IEEE 802.3af/at
• VLAN / Default / Extend Modes for flexible network control
• Extend Mode up to 250m for long cable runs
• Stable performance with 10.8G switching capacity
• Wide operating temperature: -10°C ~ 50°C

Technical Specifications

Modes Explained

• VLAN Mode: Ports 1–24 isolated & communicate via uplink; AI mode ON.
• Default Mode: All ports communicate normally (10/100M adaptive).
• Extend Mode: Ports 9–24 support 250m cable distance at 10M speed; AI mode ON.

Physical Specification

Product Size: 270 × 181 × 44mm

Packaging Size: 350 × 240 × 90mm

The Jovision JVS-S27-24P-300W PoE Switch is the perfect choice for medium to large-scale security camera setups requiring stable, high-power PoE output and professional network management features.
