| Price | 7,950৳ |
| Regular Price | 8,500৳ |
| Status | In Stock |
| Product Code | 13694 |
| Brand | Jovision |
| Display | ||
| Interface | 1 HDMI, 1 VGA | |
| Resolution | HDMI:3840x2160@30Hz/2560x1440@30Hz/1920x1080/1440x900/1280x1024/1280x720/1024x768 VGA: 1920x1080,1440x900,1280x1024,1280x720,1024x768 |
|
| Decoding Capacity | 1CH 4K 15fps;8CH@ 5.0MP/4.0MP/1080P/960P/720P 25fps | |
| Multi-Screen Display | 1/4/5/6/7/8/9 | |
| OSD | Camera Name & Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number | |
| Recording | ||
| Compression | H.265/H.264 | |
| Record Mode | Manual, Schedule, MD | |
| Resolution | 1CH 4K;8CH 5.0MP/4.0MP/1080P/960P/720P | |
| Video Detection And Alarm | ||
| Trigger Event | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer | |
| Video Detection | Motion Detection, No Video Detection | |
| Playback And Backup | ||
| Sync Playback | 1CH 4K,1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080P | |
| Search Mode | Channel number / recording type / date | |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom | |
| Backup Mode | FAT32 USB Device/Network | |
| Network | ||
| Interface | 1 RJ-45 port (10/100Mbps) | |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP | |
| Smart Phone | iPhone, Android | |
| Storage | ||
| eSATA | 1 SATA interfaces | |
| Power | ||
| Power Consumption | ≤ 10 W (Without HDD) | |
| Power Supply | DC 12V | |
| Component Environment | ||
| Storage Conditions | up to 10TB | |
| Construction | ||
| Dimensions | 260X47.5X225mm | |
| Net Weight | ≤ 1.0kg (Without HDD) | |
| Warranty | ||
| Manufacturing Warranty | 1 Year Warranty | |

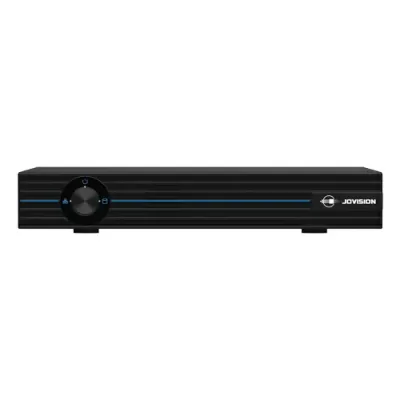

The Jovision JVS-ND7610-HP is a powerful and reliable 10-channel Network Video Recorder (NVR) designed for professional IP surveillance systems. Supporting 4K HDMI output and advanced H.265/H.264 video compression, it ensures high-definition recording with optimized storage efficiency.
With 80Mbps bandwidth input/output, support for up to 10TB SATA HDD, multi-screen live view, and ONVIF compatibility, this NVR is ideal for homes, offices, retail shops, and commercial environments.
Connect up to 10 IP cameras with stable 80Mbps bandwidth.
Supports 3840×2160 @30Hz ultra HD display via HDMI.
H.265/H.264 reduces storage usage while maintaining video quality.
1 SATA interface supporting HDD up to 10TB capacity.
View live and playback via iPhone & Android devices.
Motion detection with alarm trigger via email, buzzer, snapshot & client alert.
Audio output through HDMI with IPC audio input support.
Works with standard ONVIF 2.4 IP cameras.
