CCTV Builder
 (1)-400x400.png "Hikvision DS-3E0105P-E/M(B) 4 Port Fast Ethernet Unmanaged POE Switch")
| Price | 2,900৳ |
| Regular Price | 3,200৳ |
| Status | In Stock |
| Product Code | 13475 |
| Brand | Hikvision |
| Main Feature | ||
| Type | ||
| Port | ||
| Network Standard | ||
| Transmission Method | ||
| Data Transmission Rate | ||
| Mac Address Table | ||
| Environment | ||
| Hardware Features | ||
| Dimensions(L x W x H) | ||
| LED | ||
| Power Supply | ||
| Interface | ||
| Manufacture Warranty | ||
| Warranty | ||
| Network | ||
| Internal HDD | ||
| HDD Mode | ||

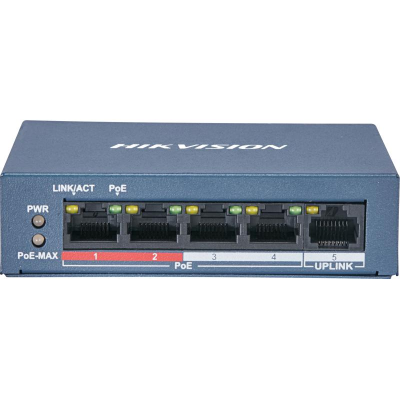

Robust Metal Unmanaged Switch with 300m Long-Range Transmission
The Hikvision DS-3E0105P-E/M(B) is a compact, Layer 2 unmanaged PoE switch designed to power and connect IP cameras efficiently. Unlike standard plastic switches, this model features a rugged Metal Shell for better heat dissipation and durability. It offers 4 PoE ports capable of powering devices up to 300 meters away, making it the ideal solution for reliable security installations in homes, retail stores, and small offices.
| Model | DS-3E0105P-E/M(B) |
|---|---|
| Ports | 4 × 10/100 Mbps PoE Ports 1 × 10/100 Mbps RJ45 Uplink |
| Total PoE Budget | 35 W |
| Max Power Per Port | 30 W |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| Switching Capacity | 1 Gbps |
| Long Range Mode | Up to 300m (Ports 1-4) |
| Surge Protection | 6 KV |
| Shell Material | Metal |
| Dimensions | 105 mm × 27.6 mm × 83.1 mm |
| Power Supply | 48 VDC, 0.8 A (External) |
| Installation | Desk-Mounted, Wall-Mounted |
