| Price | 10,990৳ |
| Regular Price | 12,490৳ |
| Status | In Stock |
| Product Code | 13984 |
| Brand | TP-Link |

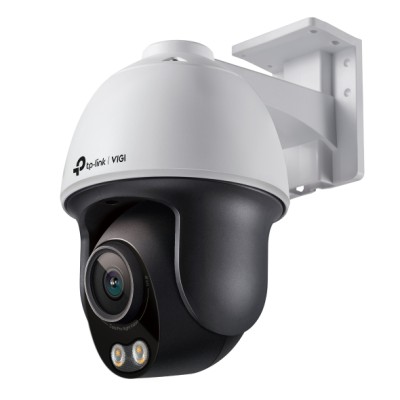

The VIGI C540S is a professional 4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera designed for advanced 24-hour security monitoring. It combines ultra-low-light ColorPro imaging, 360° monitoring, People & Vehicle Analytics, Human & Vehicle Classification, Smart Detection, True WDR, Active Defense, two-way audio, H.265+ compression and IP66 outdoor protection.
With a highly sensitive 1/1.79-inch Progressive Scan CMOS sensor, F1.0 large-aperture lens, 120dB True WDR and motorized pan and tilt control, the VIGI C540S provides detailed and colorful surveillance in challenging lighting conditions.
The VIGI C540S 4MP Pan Tilt IP Camera provides up to 2688 × 1520 resolution for detailed surveillance monitoring. Its ColorPro Night Vision system is designed to capture clear and colorful images even under ultra-low-light conditions.
The combination of a 1/1.79-inch highly sensitive sensor, F1.0 aperture, specialized white illumination and intelligent image processing makes the VIGI C540S suitable for businesses, warehouses, parking areas, entrances, commercial properties and other professional surveillance environments.
VIGI ColorPro Night Vision is designed to provide colorful and detailed images in extremely low-light conditions. Unlike traditional IR-based night vision, ColorPro technology is designed to preserve useful color information without relying on IR illumination.
The VIGI C540S combines an F1.0 large aperture, a highly sensitive image sensor, specially designed white lights and an embedded ISP module. According to VIGI, the F1.0 aperture collects more light than a traditional F2.0 aperture, while the sensitive sensor helps make better use of available light.
The camera can operate down to 0.0005 Lux, while its white LEDs provide illumination up to 30 meters when required. The illuminator can be configured for automatic, scheduled, always-on or always-off operation.
The VIGI C540S PTZ camera supports a pan range of up to 0° to 348° and a tilt range of 0° to 105°. This allows the camera to monitor a wide area and adjust its viewing direction remotely.
The camera supports 300 presets and up to 8 patrol scans, with up to 8 presets available for each patrol. It also supports power-off memory, park action and 3D positioning for flexible professional PTZ management.
The VIGI C540S features People & Vehicle Analytics, allowing users to search and filter people or vehicles of interest using multiple attributes. This can significantly improve post-event search efficiency when reviewing surveillance footage.
Combined with Human & Vehicle Classification, the camera helps security teams focus on relevant people and vehicle activity rather than general movement.
The integrated AI system can distinguish humans and vehicles from other objects. This helps provide more accurate event notifications and can reduce irrelevant alerts caused by general environmental movement.
This feature is particularly useful for entrances, parking areas, warehouses, retail shops, factories and commercial properties where people and vehicle activity needs to be monitored.
The VIGI C540S Smart Detection camera supports multiple intelligent security events to help identify important activities within the monitored area.
Alarm linkage can include memory card recording, message push, audible warnings and white-light flashing, helping users respond quickly to important security events.
The 120dB True WDR technology helps balance image exposure when a scene contains both very bright and dark areas. This is useful for entrances, windows, parking areas and other locations with challenging lighting conditions.
The camera also supports 3D DNR, BLC and HLC to help improve image quality in different surveillance environments.
The Active Defense function adds an additional security layer by using audible warnings and white-light flashing when supported abnormal events are detected.
This active response can help warn potential intruders and draw attention to unusual activity within the monitored area.
VIGI C540S includes a built-in microphone and speaker for two-way audio communication. Users can listen to activity around the camera and communicate remotely through compatible VIGI management platforms.
The camera supports audio input and output, 8KHz audio sampling and environmental noise filtering, providing practical voice communication for security monitoring.
With H.265+ video compression, VIGI C540S efficiently compresses surveillance footage to help reduce network bandwidth and storage requirements while maintaining useful image quality.
The main stream supports H.265+, H.265, H.264+ and H.264, while the sub-stream supports H.265 and H.264. A third stream is also available at up to 1280 × 720 resolution and 15fps.
The VIGI C540S includes a built-in microSD card slot supporting up to 256GB for local video recording. The microSD card is not included with the camera.
The camera can be managed through the VIGI App, VIGI Security Manager and Web UI. It also supports ONVIF and cloud functionality for flexible integration into professional IP surveillance environments.
VIGI C540S supports PoE 802.3at Class 4 and 12V DC power. PoE can simplify professional CCTV installation by carrying network data and power through a single Ethernet connection when compatible PoE equipment is used.
| Model | VIGI C540S |
|---|---|
| Camera Type | 4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera |
| Image Sensor | 1/1.79" Progressive Scan CMOS |
| Maximum Resolution | 2688 × 1520 |
| Lens | Fixed Focal Lens, 4mm, F1.0 ±5% |
| Lens Mount | M16 × P0.5 |
| Field of View | Horizontal: 104°, Vertical: 55°, Diagonal: 127° |
| DORI Distance | Detect: 63m; Observe: 26m; Recognize: 13m; Identify: 6m |
| Minimum Illumination | 0.0005 Lux; 0 Lux with White Light |
| IR LED | N/A |
| White LEDs | 2 LEDs, up to 30m |
| Pan Range | 0° to 348° |
| Tilt Range | 0° to 105° |
| Pan Speed | Configurable 8° to 44°/s; Preset Speed 44°/s |
| Tilt Speed | Configurable 8° to 44°/s; Preset Speed 44°/s |
| Manual Control Speed | Configurable 8° to 35°/s |
| Presets | Up to 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-Off Memory | Supported |
| Park Action | Supported |
| 3D Positioning | Supported |
| WDR | 120dB True WDR |
| Image Enhancement | BLC, 3D DNR, HLC, White Balance |
| Audio | Two-Way Audio with Built-in Microphone and Speaker |
| Audio Sampling | 8KHz |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Storage | Built-in MicroSD Card Slot, up to 256GB |
| Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port with PoE |
| PoE | 802.3at, Class 4 |
| ONVIF | Supported |
| Management | VIGI App, VIGI Security Manager and Web UI |
| Cloud | Supported |
| People & Vehicle Analytics | Supported |
| Smart Features | Human & Vehicle Classification, Smart Detection, People & Vehicle Analytics, Active Defense |
| Protection Rating | IP66 Waterproof |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 95% or Less, Non-Condensing |
| Power Supply | 12V DC ±5%, Max. 13.13W; PoE 802.3at Class 4, Max. 16.47W |
| Dimensions | 120 × 172 × 203 mm |
| Material | Plastic |
The VIGI C540S 4MP Outdoor ColorPro Night Vision Pan Tilt Camera is suitable for a wide range of residential, commercial and professional surveillance applications, including:
The VIGI C540S combines 4MP high-definition imaging, ColorPro Night Vision, 360° pan tilt monitoring, People & Vehicle Analytics, Human & Vehicle Classification, Smart Detection, 120dB True WDR, Active Defense and two-way audio in one professional network camera.
With F1.0 ultra-large aperture, 1/1.79-inch sensitive sensor, H.265+ compression, microSD recording, ONVIF compatibility, PoE and IP66 outdoor protection, the VIGI C540S is a strong choice for modern commercial and professional IP CCTV surveillance systems.
