| Price | 8,190৳ |
| Regular Price | 8,590৳ |
| Status | In Stock |
| Product Code | 13982 |
| Brand | TP-Link |

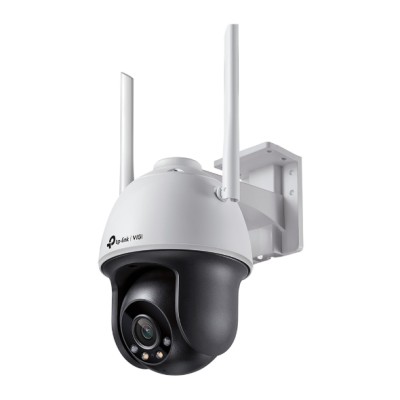

The VIGI C540-W is a professional 4MP outdoor full-color Wi-Fi pan tilt network camera designed for intelligent 24-hour security monitoring. It combines 4MP high-resolution imaging, 24-hour full-color night vision, powerful pan and tilt movement, automatic tracking, Human & Vehicle Classification, Smart Detection, Active Defense, two-way audio and wireless connectivity in one versatile surveillance solution.
With 2.4GHz Wi-Fi, Ethernet connectivity, IP66 outdoor protection, H.265+ compression and up to 512GB microSD storage, the VIGI C540-W provides flexible installation and reliable monitoring for homes, businesses, warehouses, shops, parking areas and other outdoor environments.
The VIGI C540-W 4MP Wi-Fi pan tilt IP camera delivers up to 2560 × 1440 resolution for detailed security monitoring. Its large-aperture F1.6 lens, high-sensitivity sensor and supplemental lights support 24-hour full-color surveillance.
The camera is designed for locations where users need both flexible viewing angles and wireless networking. It can be connected through 2.4GHz Wi-Fi or the RJ45 Ethernet interface, providing greater flexibility during CCTV installation.
The VIGI C540-W Pan Tilt Camera supports a pan range of up to 0° to 350° and a tilt range of 0° to 120°. This allows the camera to monitor a broad area and adjust its viewing direction remotely.
The camera supports up to 300 presets and up to 8 patrol scans, with up to 8 presets assigned to each patrol. Configurable pan and tilt speeds provide flexible control for different monitoring environments.
One of the key advantages of the VIGI C540-W outdoor Wi-Fi camera is its wireless networking capability. The camera supports IEEE 802.11b/g/n 2.4GHz Wi-Fi and uses two 2×2 MIMO antennas for wireless communication.
Wi-Fi connectivity can simplify deployment in locations where running network cables is difficult. The camera also includes a 10/100M RJ45 Ethernet port, allowing installers to choose wired or wireless networking according to the installation requirements.
The wireless mode supports both AP and AP Client operation, while WPA/WPA2-PSK wireless security helps protect the network connection.
The VIGI C540-W is designed for 24-hour full-color surveillance. Its large-aperture F1.6 lens, high-sensitivity 1/3-inch Progressive Scan CMOS sensor and supplemental lighting help capture useful color details in low-light environments.
The camera features two IR LEDs with up to 30-meter illumination and two white LEDs with up to 30-meter illumination. The illuminators can be configured for automatic, scheduled, always-on or always-off operation.
The VIGI C540-W automatic tracking camera uses intelligent image analysis to follow specified moving people or vehicles. Combined with its Pan Tilt mechanism, automatic tracking helps maintain visual coverage when a subject moves through the monitored area.
This feature is especially useful for entrances, parking areas, warehouses, shops, commercial premises and other locations where subjects may move across a wide surveillance zone.
Integrated AI algorithms can distinguish humans and vehicles from other objects. Users can customize alarm rules according to their monitoring requirements, helping improve the accuracy of security notifications.
Human and Vehicle Classification is useful for reducing unnecessary alerts caused by general movement and focusing surveillance notifications on relevant people and vehicle activity.
The VIGI C540-W Smart Detection camera supports multiple intelligent security events to help identify important activities within the monitored area.
These intelligent functions allow users to create customized monitoring rules and receive notifications when specific events occur.
The Active Defense function adds an extra layer of security by using audible warnings and white-light flashing when supported abnormal events are detected.
This active response can help warn potential intruders and draw attention to unusual activities within the monitored area.
VIGI C540-W includes a built-in microphone and speaker for two-way audio communication. Users can listen to activity around the camera and communicate remotely through compatible VIGI management platforms.
The camera supports audio input and output, 8KHz audio sampling and environmental noise filtering, providing practical remote communication for security monitoring.
The VIGI C540-W uses VIGI Smart Video Enhancement technologies including Smart IR, WDR, 3D DNR and Night Vision to improve image quality in challenging lighting conditions.
3D DNR helps reduce image noise, while Smart IR and Night Vision improve visibility in low-light environments. DWDR helps balance image details between bright and dark areas.
With H.265+ video compression, the VIGI C540-W can compress surveillance footage efficiently to help reduce storage requirements and network load.
The main stream supports H.265+, H.265, H.264+ and H.264, while the sub-stream supports H.265 and H.264, providing flexible compatibility with modern IP surveillance systems.
The VIGI C540-W includes a built-in microSD card slot supporting microSD cards up to 512GB. This provides a convenient local recording option without requiring an external storage device.
The camera can be managed through the VIGI App, VIGI Security Manager and Web UI. Depending on the surveillance setup, recordings can also be managed through compatible NVR, NAS and FTP storage solutions.
VIGI C540-W provides both Wi-Fi and Ethernet networking. The 2.4GHz wireless connection helps simplify deployment, while the 10/100M RJ45 Ethernet port provides a traditional wired networking option.
The camera uses a 12V DC power adapter and includes waterproof cable attachments for outdoor installation. Its IP66 protection rating helps provide reliable performance in outdoor environments.
| Model | VIGI C540-W |
|---|---|
| Camera Type | 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4MP, 2560 × 1440 |
| Lens | Fixed Focal Lens, 4mm, F1.6 |
| Lens Mount | M12 |
| Field of View | Horizontal: 79°, Vertical: 43°, Diagonal: 93° |
| DORI Distance | Detect: 80m; Observe: 33m; Recognize: 16m; Identify: 8m |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| IR LEDs | 2 LEDs, up to 30m, 850nm |
| White LEDs | 2 LEDs, up to 30m |
| Pan Range | 0° to 350° |
| Tilt Range | 0° to 120° |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Automatic Tracking | Supported |
| 3D Positioning | Supported |
| WDR | DWDR |
| Image Enhancement | BLC, 3D DNR, HLC, Smart IR |
| Audio | Two-Way Audio with Built-in Microphone and Speaker |
| Audio Sampling | 8KHz |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Storage | Built-in MicroSD Card Slot, up to 512GB |
| Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| Wi-Fi Standard | IEEE 802.11b/g/n, 2.4GHz |
| Wireless Mode | AP and AP Client |
| Wireless Security | WPA/WPA2-PSK |
| Wireless Antennas | 2 × 2.4GHz Welded Dipole Omni-Directional Antennas, 2.0dBi Gain |
| ONVIF | Supported, Profile S |
| Cloud | Supported |
| Smart Features | Human & Vehicle Classification, Smart Detection, Automatic Tracking, Active Defense |
| Protection Rating | IP66 Waterproof |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 95% or Less, Non-Condensing |
| Power Supply | 12V DC / 1A |
| Dimensions | 120 × 172 × 198 mm, excluding antennas |
| Material | Plastic |
| Net Weight | 0.62 kg |
The VIGI C540-W 4MP Outdoor Full-Color Wi-Fi Pan Tilt Camera is suitable for a wide range of residential, commercial and professional surveillance applications, including:
The VIGI C540-W combines 4MP full-color imaging, powerful Pan Tilt movement, automatic tracking, Human & Vehicle Classification, Smart Detection, Active Defense, two-way audio and wireless networking in a single professional surveillance camera.
Its combination of 2.4GHz Wi-Fi, Ethernet connectivity, IP66 outdoor protection, H.265+ compression, 512GB microSD support, ONVIF compatibility and flexible VIGI management makes it a versatile solution for modern business and outdoor CCTV installations.
