Key Features of VIGI C230I

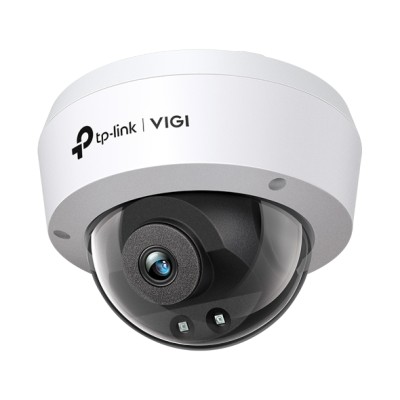

3MP IR Dome IP Camera for Professional Surveillance

The VIGI C230I 3MP Dome IP Camera provides up to 2304 × 1296 resolution for detailed security monitoring. Its compact dome form factor is suitable for professional indoor and outdoor surveillance installations.

The camera uses a 1/2.8-inch Progressive Scan CMOS sensor and supports 2.8mm and 4mm fixed focal lens options. This provides flexibility for different viewing angles and surveillance distances.

30-Meter IR Night Vision

The VIGI C230I IR night vision camera is designed for continuous day-and-night surveillance. Two built-in 850nm infrared LEDs provide up to 30 meters of IR illumination, helping maintain visibility when ambient light is limited.

Smart IR technology helps manage infrared illumination and reduce overexposure, supporting clearer nighttime surveillance footage.

Human & Vehicle Classification

The VIGI C230I features intelligent Human & Vehicle Classification that can distinguish people and vehicles from other objects. This helps improve the accuracy and relevance of security event notifications.

Users can customize classification and alarm rules according to their monitoring requirements, making the camera suitable for building entrances, parking areas, retail stores, offices, warehouses and commercial properties.

Smart Detection & Security Events

The VIGI C230I Smart Detection camera supports multiple intelligent security events to help identify important activities within the monitored area.

• Motion Detection
• Human & Vehicle Classification
• Area Intrusion Detection
• Line-Crossing Detection
• People Detection
• Vehicle Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Camera Tampering Detection
• Illegal Login Exception Detection

Configured security events can trigger message push notifications, helping users stay informed about important surveillance activities.

Smart Video Enhancement Technology

The VIGI C230I includes professional image enhancement technologies designed to improve surveillance video quality in challenging lighting conditions.

• DWDR: Helps balance bright and dark areas in high-contrast scenes.
• Smart IR: Helps control infrared illumination and reduce nighttime overexposure.
• 3D DNR: Helps reduce image noise while preserving important image details.
• HLC: Helps manage overly bright light sources within the surveillance scene.
• Night Vision: Supports reliable monitoring in low-light and dark environments.

H.265+ Video Compression

With H.265+ video compression, the VIGI C230I efficiently compresses surveillance footage to help reduce network bandwidth usage and storage requirements.

The main stream supports H.265+, H.265, H.264+ and H.264, while the sub-stream supports H.265 and H.264, providing flexible compatibility with modern IP surveillance systems.

IK10 Vandal-Proof & IP67 Waterproof Protection

The VIGI C230I IK10 and IP67 dome camera is designed for demanding surveillance environments. IK10 protection helps resist physical impact, while IP67 protection helps protect the camera against dust and water.

With an operating temperature range of -30°C to 60°C, the camera is designed for reliable operation across a wide range of environmental conditions.

PoE & 12V DC Connectivity

The VIGI C230I supports both PoE and 12V DC power. PoE can simplify professional CCTV installation by allowing compatible network equipment to provide power and network connectivity through an Ethernet cable.

The camera supports 802.3af/at PoE, Class 0, with maximum power consumption of approximately 5W via 12V DC.

Flexible 2.8mm & 4mm Lens Options

The VIGI C230I is available with two fixed focal length options for different surveillance distances and viewing requirements.

• 2.8mm Lens: Horizontal FOV 97.8°, suitable for wider-area monitoring.
• 4mm Lens: Horizontal FOV 82.5°, providing a more focused viewing angle.

The different lens options also provide different DORI distances, allowing installers to select the appropriate version for specific monitoring requirements.

Flexible Management & ONVIF Compatibility

The VIGI C230I can be managed through the VIGI App, VIGI Security Manager, VIGI NVR and Web interface.

With ONVIF compatibility, the camera can be integrated into suitable professional IP surveillance systems and compatible network video management environments.

Technical Specifications

Ideal Applications

The VIGI C230I 3MP IR Dome Camera is suitable for a wide range of residential, commercial and professional surveillance applications, including:

• Office buildings and commercial premises
• Retail shops and showrooms
• Warehouses and storage facilities
• Factories and industrial premises
• Parking areas and vehicle monitoring
• Building entrances and access points
• Hotels and restaurants
• Residential properties
• Property perimeter monitoring
• Outdoor and semi-outdoor surveillance
• Professional PoE CCTV installations

Why Choose VIGI C230I?

The VIGI C230I combines 3MP Super-High Definition imaging, 30-meter IR night vision, Human & Vehicle Classification, Smart Detection, H.265+ compression, IK10 vandal resistance and IP67 waterproof protection in a compact professional dome camera.

With 2.8mm and 4mm lens options, PoE/12V DC connectivity, ONVIF compatibility, cloud support and flexible VIGI management software, the VIGI C230I is a practical choice for modern residential, commercial and professional IP CCTV surveillance systems.
