| Price | 38,600৳ |
| Regular Price | 42,500৳ |
| Status | In Stock |
| Product Code | 14000 |
| Brand | Uni-Ubi |

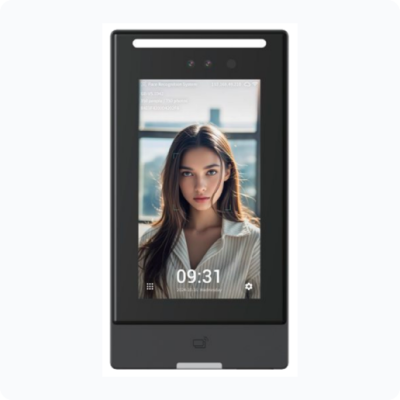

The Uni-Ubi Uface 7 SE is a portrait recognition terminal designed for modern access control and identity verification. It features a 7-inch IPS full-view LCD touchscreen, high-definition RGB and infrared cameras, live face detection, and built-in IC and ID card support.
With a capacity of up to 50,000 face images and 50,000 cards, the Uface 7 SE is suitable for offices, commercial buildings, educational institutions, and other controlled-entry environments. Its IP65 protection, Wi-Fi connectivity, and wall-mount or turnstile installation options provide flexibility for compatible access control projects.
Features a 7-inch IPS full-view LCD touchscreen with 550 cd/m² brightness and 1024 × 600 resolution.
Offers manufacturer-stated recognition accuracy of up to 99.99% under specified test conditions.
Supports facial recognition with a manufacturer-specified recognition speed of less than 0.5 second.
Supports liveness detection to help protect against facial spoofing attempts during authentication.
Includes a built-in card reader supporting IC and ID cards for compatible access verification.
The IP65-rated enclosure is designed to provide dust and water-jet protection in suitable installations.
Supports up to 50,000 face images and 50,000 cards for larger user-registration requirements.
Features a 10/100 Mbps adaptive network interface and Wi-Fi 4.0 connectivity.
Includes a three-colour LED indicator to provide visual status feedback during operation.
The Uni-Ubi Uface 7 SE is designed for quick facial verification at access control points. According to the manufacturer, the recognition speed is less than 0.5 second and recognition accuracy is up to 99.99% under specified conditions.
The manufacturer also lists a recognition pass rate of 99.77% at a 1% misrecognition rate and 99.27% at a 0.1% misrecognition rate. Actual performance can vary depending on lighting, installation, user positioning, and operating conditions.
Its RGB and infrared cameras use 1920 × 1080 image sensors. Anti-backlight support helps the terminal operate in challenging lighting environments, while liveness detection adds an additional verification capability.
The Uni-Ubi Uface 7 SE supports multiple identification methods to suit different access control requirements. The available mode can be selected according to the configured system.
| Specification | Details |
|---|---|
| Brand | Uni-Ubi |
| Model | Uface 7 SE |
| Device Type | Portrait Recognition Terminal |
| Display | 7-inch IPS full-view LCD touchscreen |
| Display Resolution | 1024 × 600 |
| Screen Brightness | 550 cd/m² |
| RGB Camera Sensor | 1/2.9-inch Progressive Scan CMOS |
| RGB Camera Resolution | 1920 × 1080 |
| Infrared Camera Sensor | 1/2.9-inch Progressive Scan CMOS |
| Infrared Camera Resolution | 1920 × 1080 |
| Camera Field of View | Vertical 47°, horizontal 30° |
| Camera Focal Length | 4.3 mm |
| Camera Aperture | F2.0 |
| Recognition Speed | Less than 0.5 second |
| Recognition Accuracy | Up to 99.99% under specified test conditions |
| Face Capacity | Up to 50,000 face images |
| Card Capacity | Up to 50,000 cards |
| Identification Records | Up to 200,000 records |
| Card Reader | Built-in IC and ID card module |
| Authentication Methods | Face, card, face and card, face and ID comparison, password |
| Simultaneous Portrait Detection | Detects and tracks up to 5 people simultaneously |
| Network Interface | 10/100 Mbps adaptive Ethernet |
| Wireless Connectivity | Wi-Fi 4.0 |
| Serial Communication | 1 × RS-485 |
| Relay Output | 1 door-opening signal output and 1 dry-contact output |
| Wiegand Interface | Wiegand 26/34/50/66 output and switchable input |
| Signal Inputs | 2 switchable signal inputs |
| USB Interface | 1 × Type-A USB |
| Other Hardware | Reset button, tamper switch, built-in speaker |
| Operating System | Linux |
| Processor | Dual-core ARM Cortex-A7 with RISC-V MCU |
| NPU Performance | 1.2 TOPS, supports INT8/INT16 |
| Memory | 512 MB RAM |
| Storage | 8 GB |
| Software Support | Ustar LAN and Ustar Cloud |
| Deployment | Public network or LAN |
| Protection Rating | IP65 |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 10%–90% |
| Power Supply | DC 12V / 2A |
| Maximum Power Consumption | 15W |
| Wall-Mount Dimensions | 239 × 126 × 26 mm |
| Turnstile Dimensions | 346 × 126 × 62 mm |
| Installation Method | Wall mount or turnstile installation |
The Uni-Ubi Uface 7 SE supports wired Ethernet and Wi-Fi 4.0 connectivity for compatible access management deployments. Its RS-485, relay, Wiegand, and signal input interfaces support integration with compatible access control hardware.
The device also includes a Type-A USB interface, reset button, and tamper switch. Confirm the required wiring, electric lock, controller, and network configuration before installation.
The manufacturer lists Ustar LAN and Ustar Cloud as supported software options for the Uni-Ubi Uface 7 SE. The device supports deployment through a public network or local area network (LAN).
Remote upgrade support is listed by the manufacturer. Available management functions may depend on the selected software, licensing, network environment, and system configuration. Confirm compatibility before integrating the terminal into an existing access control system.
The Uni-Ubi Uface 7 SE combines facial recognition, liveness detection, IC/ID card support, and a 7-inch IPS touchscreen in one access control terminal. Its capacity for 50,000 face images and 50,000 cards makes it suitable for compatible projects requiring large user-registration capacity.
With IP65 protection, wired and wireless network connectivity, and wall-mount or turnstile installation options, the Uface 7 SE offers flexibility for different entry management environments. Correct installation and compatible software configuration are important for reliable operation.
Looking for the Uni-Ubi Uface 7 SE price in Bangladesh? Contact Master Technology for current pricing, stock availability, and assistance choosing a suitable facial recognition access control solution for your project.
The total project cost may depend on the required access control accessories, compatible locking system, software, and installation requirements.
