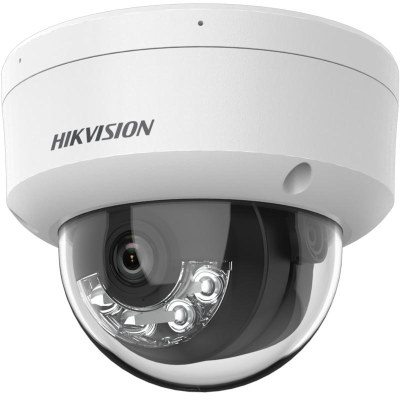

Hikvision DS-2CD1143G2-LIU(F) 4MP Smart Dome IP Camera

The Hikvision DS-2CD1143G2-LIU(F) is a high-performance 4MP Smart Dome Network Camera designed for reliable surveillance in homes, offices, and commercial environments. With H.265+ compression, 120 dB true WDR, built-in microphone, and smart IR up to 30 meters, it ensures crystal-clear video and audio monitoring day and night.

Key Features

• 4MP (2560 × 1440) resolution for ultra-clear video
• 1/3” Progressive Scan CMOS image sensor
• Smart IR and white light up to 30 m for true color night vision
• Built-in microphone with noise filtering for clean audio
• 120 dB True WDR ensures visibility in any lighting condition
• Advanced motion detection for human & vehicle classification
• Supports H.265+/H.264+ for efficient video compression
• IP67 & IK08 rated — weatherproof and vandal-resistant design
• PoE/12V DC dual power supply for flexible installation

 Lens & Imaging

Available in 2.8 mm (98° FOV) and 4 mm (78° FOV) fixed lenses, this dome camera covers wide areas with sharp detail. Featuring BLC, HLC, and 3D DNR image enhancement, it delivers crisp and balanced footage even in challenging lighting.

Day & Night Performance

With its IR cut filter and smart supplement light technology, the DS-2CD1143G2-LIU(F) adapts automatically to lighting changes, providing full-color monitoring in low-light conditions and clear IR imaging in complete darkness.

Network & Integration

The camera supports ONVIF, ISAPI, SDK, and Hik-Connect for seamless integration into NVR systems or mobile monitoring apps. It also supports FTP, email alerts, and microSD card storage up to 512GB (F model).

Technical Highlights

• Video Compression: H.265+, H.265, H.264+, H.264
• Audio Compression: G.711, G.722.1, AAC-LC, MP2L2
• WDR: 120 dB | SNR: ≥ 52 dB
• Operating Temperature: −30°C to +60°C
• Protection: IP67 Weatherproof, IK08 Vandal-Resistant
• Power: 12 VDC ± 25% or PoE (IEEE 802.3af, Class 3)

Ideal For

Offices, retail shops, warehouses, parking lots, and other high-security indoor/outdoor environments needing stable, high-resolution surveillance.
