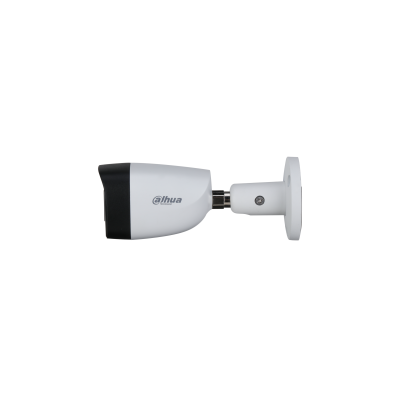

Dahua HAC-HFW1209CMP-A-LED – 2MP Full-Color HDCVI Bullet Camera
The Dahua HAC-HFW1209CMP-A-LED is a powerful 2MP Full HD HDCVI bullet camera designed for full-color night surveillance using white LED illumination. With a large 1/2.8" CMOS sensor, F1.6 aperture lens, built-in microphone, and durable metal housing, it delivers clear video, accurate color reproduction, and reliable performance in outdoor environments.
Key Features
- 2MP (1920 × 1080) Full HD video output
- Full-color night vision with white LED illumination
- Up to 20m illumination distance
- Built-in microphone for audio recording
- Large 1/2.8" CMOS sensor for enhanced low-light performance
- DWDR, BLC & HLC for balanced lighting
- 2D Noise Reduction for cleaner video
- Multi-format output: CVI / TVI / AHD / CVBS
- Strong metal housing with IP67 protection
- Wide viewing angle with 2.8mm or 3.6mm lens
Technical Specifications
- Image Sensor: 1/2.8" CMOS
- Effective Pixels: 2MP (1920 × 1080)
- Minimum Illumination: 0.01 Lux (Color), 0 Lux (LED on)
- Lens: 2.8mm (Optional) / 3.6mm Fixed Lens, F1.6
- Field of View: Up to 126.2° (Diagonal)
- Video Frame Rate: 1080p @ 25/30 fps
- DORI Distance: Detect up to 55.2m (3.6mm)
- Audio: Built-in Microphone
- Power Supply: 12V DC ±30%
- Power Consumption: Max 3.1W
- Operating Temperature: –40°C to +60°C
- Ingress Protection: IP67
- Body Material: Metal
Ideal Applications
- Home & villa security
- Retail shops & showrooms
- Parking areas & entrances
- Outdoor perimeter monitoring
