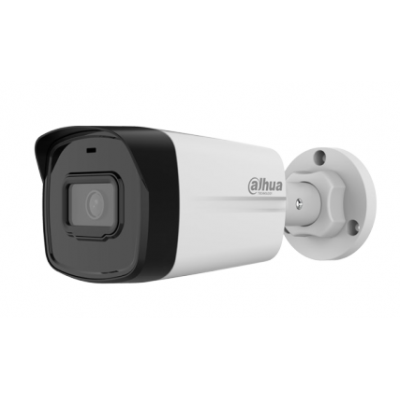

Dahua DH-IPC-HFW1230TL2-S5 – 2MP IR Bullet Network Camera

The Dahua DH-IPC-HFW1230TL2-S5 is a high-performance 2MP (1080p) IR Network Bullet Camera built for professional outdoor and indoor surveillance. Equipped with a 1/2.8” CMOS sensor, Smart IR up to 30m, and advanced H.265+/H.264+ compression, it ensures sharp and efficient video streaming even in low-light environments.

Key Features

• 2MP Full HD (1920×1080) resolution
• 1/2.8" CMOS sensor with excellent low-light sensitivity
• Smart IR up to 30m for clear night vision
• Fixed 3.6mm lens with 84° wide horizontal field of view
• DWDR, BLC, HLC for balanced lighting in challenging conditions
• H.265+/H.264+ smart codec for reduced bandwidth & storage
• Motion detection, RoI, privacy mask (4 zones)
• PoE (802.3af) & 12V DC dual power
• IP67 weatherproof body for outdoor installation
• ONVIF compatible – works with NVRs, P2P & third-party apps
• Cybersecurity features including encryption & secure boot

Lens & Imaging

• Lens: 3.6mm fixed
• Aperture: F2.0
• FOV: H: 84° | V: 45° | D: 100°
• DORI: Detect 49.7m, Observe 19.9m, Recognize 9.9m, Identify 5.0m

Video Performance

• 1080p@25/30fps main stream
• Sub-stream up to 30fps (704×480)
• Supports H.265, H.264, and MJPEG
• BLC, HLC, DWDR for dynamic lighting environments
• 3D DNR for noise-free image quality
• 0°/90°/180°/270° rotation supported

Network & Smart Features

• Motion detection (4 areas)
• 4 privacy masking zones
• RoI (4 regions)
• FTP upload, IE/Chrome/Firefox browser support
• ONVIF Profile-S | CGI | P2P

Build & Protection

• IP67 weatherproof rating
• Operating temperature: –40°C to +55°C
• Strong plastic housing with lightweight design

Ideal For

• Home entrances & boundary walls
• Shops, showrooms & offices
• Warehouses & factory areas
• Parking lots & open spaces
• Any outdoor surveillance requirement

Dahua DH-IPC-HFW1230TL2-S5 – Reliable, Smart & Affordable Outdoor IP Surveillance.
